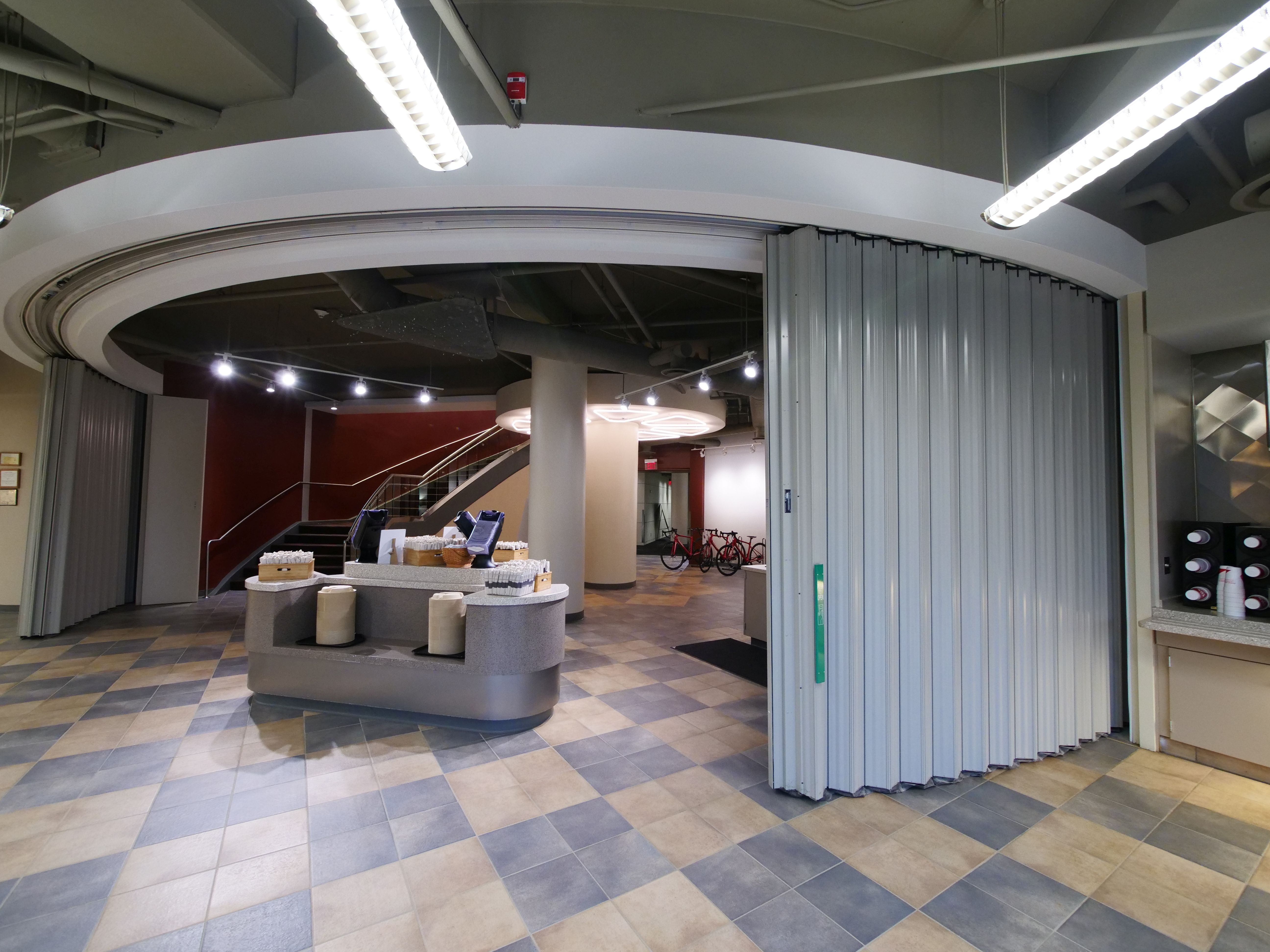

FireGuard - Curved, Bi-parting, Narrow Leadpost

https://smartbim-library-production.s3.amazonaws.com/manufacturers/2a6b2c66-fb9c-4795-81ad-682ea247da0e/products/97b0596f-be00-4eff-b8a6-cf45267a2472/88a8d0d3-1ce4-4275-b8ca-c4d0bb57c7e1/P1100010.JPG

Brand

Won-Door

Category

FireGuard

Description


Won-Door FireGuard doors are available in curved track and bi-parting configurations <40' wide OR <15' high.

Features


- Unitized Track System (UTS) eliminates the layers of plywood and drywall found in conventional accordion fire door headers

- Automatic closing system listed in accordance with U.L. 864

- Doors up to 15'-0" tall only require 1'-6" wide pockets. For pocket depth, use our stack calculator.

- Won-Door FireGuard doors are a single source assembly that eliminates the expense and associated maintenance costs of metal frames, astragals, etc.

- Pocket cover door & bumper supplied by others.

- Won-Door FireGuard doors can accommodate almost any width opening, for heights greater than 19'-0" and clear openings over 700 square feet please contact your local sales representative.

PropertyValue
AntiswayOptional (With Mechanical Security and Differential Air Pressure spec)
CurvedYes
Differential Pressure HandlingCapable up to 0.15 w.c. (Inches of water)
Door TypeCurved
Electronic Security and Remote MonitoringAdvanced Security - Optional (Requires Mechanical Security)
Fire RatingUp to 180 minutes
Key SwitchOptional
LCD Door Status DisplayOptional
Max Height30'
Max WidthVirtually Unlimited
Optical Obstruction DetectionOptional (Straight Doors only, Obstruction Test available on Curved Doors)
PartingBi-Parting
Range of Speed8-10” per second
Remote MonitoringOptional
Security/Access ControlMechanical Security - Optional
Vision PanelOptional
sort009

Product Resource download links.

Product Spec

ES Evaluation Report

20/60 Minute Details - RFA

20/60 Minute Details - DWG

20/60 Minute Details - DXF

20/60 Minute Details - PDF

90 Minute Details - RFA

90 Minute Details - DWG

90 Minute Details - DXF

90 Minute Details - PDF

180 Minute Details - RFA

180 Minute Details - DWG

180 Minute Details - DXF

180 Minute Details - PDF
