SteelGuard - Curved

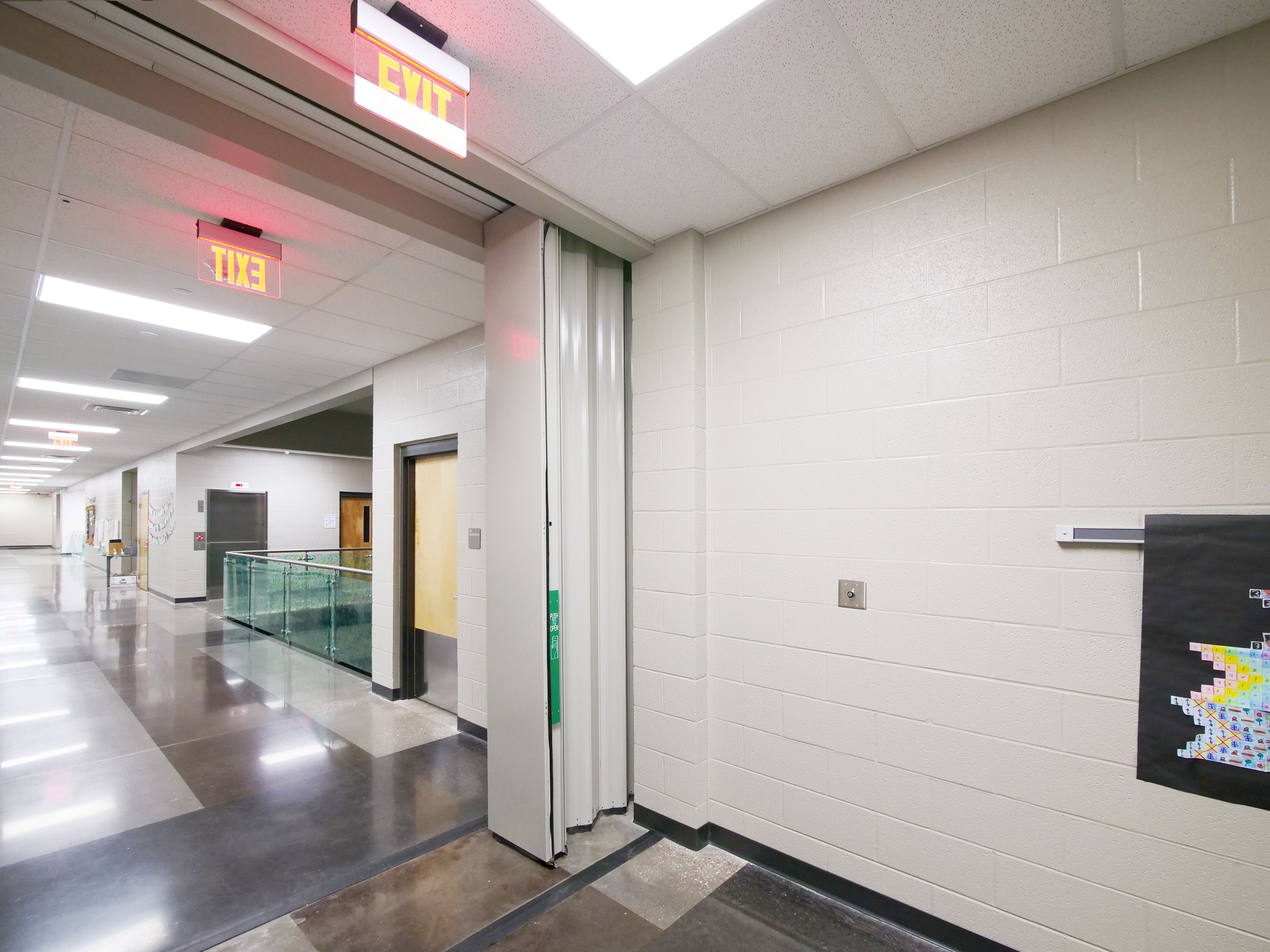

https://smartbim-library-production.s3.amazonaws.com/manufacturers/2a6b2c66-fb9c-4795-81ad-682ea247da0e/products/dd5e9191-92cc-4ce0-9d2a-bc56d51d9adb/5715b1f5-a086-4797-b00a-5e64191504a2/Copy of Osage Creek- Bentonville Elementary School P1033027.JPG

Brand

Won-Door

Category

SteelGuard

Description


Won-Door SteelGuard security doors are available with a curved track and flat leadpost configuration up to 40' x 12'.

Features


- Incorporates a flat lead-post design with an integrated pocket cover door, which is part of the assembly and covered by the U.L. label.

- Unitized Track System (UTS) eliminates the layers of plywood and drywall found in conventional accordion fire door headers.

- State of the art microprocessor control that meets U.L. 864 requirements

- The required storage pocket depths have been reduced by over 50%. An 8'-0" wide door requires only a 1'-6" deep storage pocket.

- Won-Door FireGuard doors are single source assemblies that eliminate the expense and associated maintenance costs of metal frames, astragals, etc.

PropertyValue
AntiswayStandard
CurvedNot Offered
Differential Pressure HandlingStandard up to 0.10 w.c. Max (Inches of Water)
Electronic Security and Remote MonitoringAdvanced Security - Optional (Remote Monitoring and Operation)
Key SwitchRequired (Provided by Won-Door or others)
LCD Door Status DisplayY Optional
Max Height12'
Max Width40’
Optical Obstruction DetectionOptional
PartingSingle Parting
Range of Speed16”-22” per second
Remote MonitoringOptional
Security/Access ControlMechanical Security - Standard (Electromagnetic Brake 600 lbs resistance to forced entry)
Vision PanelOptional
Fire RatingUp to 180 minutes
Door TypeFlat Lead Post
sort016

Product Resource download links.

Product Spec

Stack Chart

ES Evaluation Report

Non Rated Details - RFA

Non Rated Details - DWG

Non Rated Details - DXF

20/60 Minute Details - RFA

20/60 Minute Details - DWG

20/60 Minute Details - DXF

20/60 Minute Details - PDF

90 Minute Details - RFA

90 Minute Details - DWG

90 Minute Details - DXF

90 Minute Details - PDF

180 Minute Details - RFA

180 Minute Details - DWG

180 Minute Details - DXF

180 Minute Details - PDF
